Welcome to Gember
Gember is a responsive web application for controlling a model railroad. It needs srcp-rs as a provider of a REST backend.
Installation
- clone the project: git clone https://github.com/cbiever/gember
- run: npm install
- run: bower install
- type: ember build
- copy the contents of the dist directory /usr/local/gember
One other thing is needed, a reverse proxy to bring Gember and Srcp-rs together:
- install Nginx
- in the servers directory of the Nginx installation create a file with the name gember and the following content:
server {
listen 192.168.42.1:80 default_server;
root /usr/local/gember;
index index.html;
location / {
try_files $uri $uri/ /index.html;
}
location /api/v1/ws {
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
proxy_http_version 1.1;
proxy_read_timeout 60m;
rewrite ^/api/v1/ws/?(.*) /$1 break;
proxy_pass http://192.168.42.1:4201;
}
location /api/v1/rs {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $http_host;
proxy_set_header X-NginX-Proxy true;
rewrite ^/api/v1/rs/?(.*) /$1 break;
proxy_pass http://192.168.42.1:4202;
proxy_redirect off;
}
}
- finally start Nginx with the command: nginx -p /usr/local/etc/nginx
If all went well Gember should be available at 192.168.42.1 (e.g. wenn a Raspberry Pi is configured as an access point).
In the upper right corner a yaml configuration file can be uploaded. The docs directory contains an example: gember.yaml.
Developing
For development purposes a different setup is needed:
- Run Gember with: ember serve
- Use the following Nginx configuration:
server {
listen 80 default_server;
listen 127.0.0.1:80 default_server;
location / {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $http_host;
proxy_set_header X-NginX-Proxy true;
proxy_pass http://127.0.0.1:4200;
proxy_redirect off;
}
location /api/v1/ws {
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection "upgrade";
proxy_http_version 1.1;
proxy_read_timeout 60m;
rewrite ^/api/v1/ws/?(.*) /$1 break;
proxy_pass http://127.0.0.1:4201;
}
location /api/v1/rs {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $http_host;
proxy_set_header X-NginX-Proxy true;
rewrite ^/api/v1/rs/?(.*) /$1 break;
proxy_pass http://127.0.0.1:4202;
proxy_redirect off;
}
}

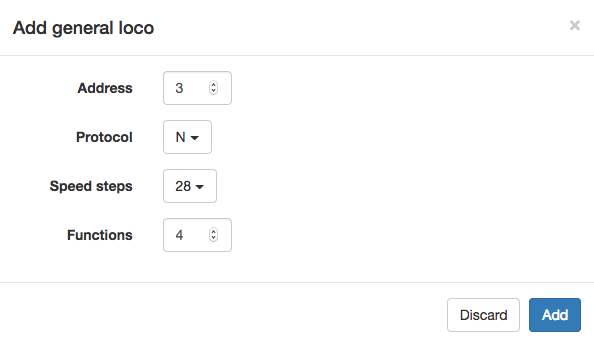

Adding a general loco:

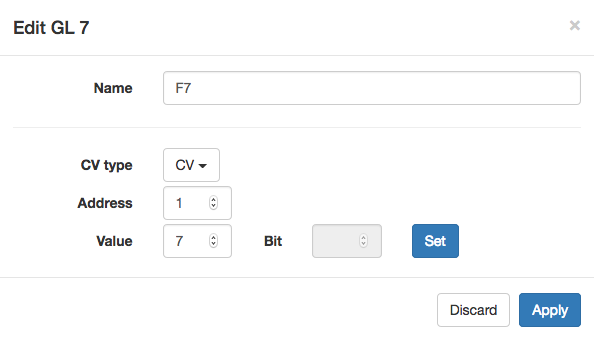

Editing of a general loco:
